3D scanner for CNC Router machine 3D model drawing
1.Product features
High-quality
1. German original sensor, dual camera with 1.3 million pixel
2. Japan 3M original lens
3. U.S Light source and raster
4. Taiwan Tripod, Hydraulic slide, running wheel
5. Automatic spliced alignment
Precision: 0.01mm, Dot pitch: 0.1-0.3mm
High efficiency (The scanning speed: 1.4 seconds/frame)
It can quickly scan the 3D data of surface, any free form objects, any hole, groove, fracture surface. With the mixed phase technique, 3D scanner can scan a surface once, and the speed is very fast, and millions of data can be got in less than 3 seconds.
High-precision(Automatic Landmark Splicing)
Provide the function of automatic landmark splicing, when scanning the objects can be arbitrary rotating and moving. The formation of 3D measurement data will be got by split joint of the marks, so as to realize the omnibearing scanning. So it can reduce the corner pocket sand blind spot.
The target can be repeated scanning, after, it will automatically splice the point cloud data, and will automatically delete. Also you can first get the mark point frame, and then start scanning from any angle, convenient operation, and single scanning precision is up to ± 0.01.
Long lifetime
With the LED light source, the service life can be above 35000h.
High resolution (High measuring accuracy, the global error is small)
The global calibration of error makes sure that the scanning data is not layering. It can scan large objects, with the global error correction, can eliminate the accumulated error.
Simple operation
The operation interface is concise, and it is easy to learn. With 2 - 3 days’ training, you can be practiced.
Flexible output data
Any arbitrary sampling rate data can be educed, and then automatic integration; after the sampling, the point cloud data arrangement doesn't change, and the technology can make up for the deficiency of the late processing software.
A variety of data format can be formed for other soft wares including obg,sfl,ply,asc,ac,pif and so on. Also can be converted to AutoCAD, Geomagic Studio, Rapid Form, ImageWarepost, and then carries on the post-processing.
Easy to carry
The hardware system is smaller in size, less land occupation, no noise, easy assembly and disassembly, convenient to carry, not affected by environment, and is not influenced by the size limit
Application
Reverse engineering, mold industry, auto parts, casting, sheet metal, plastic products, clothing shoes, furniture industry, arts and crafts, portrait scanning, archaeological industry.
Samples scanned by 3D scanner
Parameter
Model |

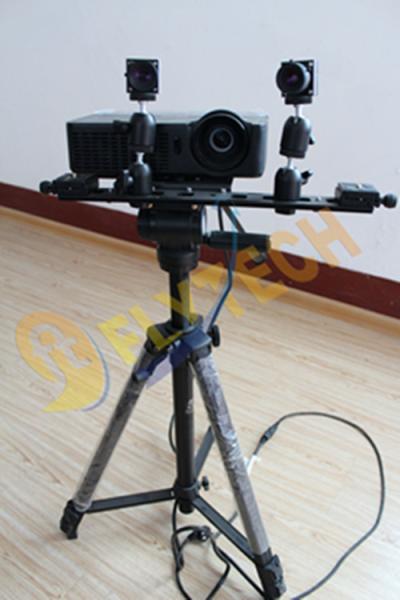

FT-3DSMY( photo ) |
Scan mode |
Non-contact scanning |
Camera |
Dual camera with 1.3 million piex |
Single precision(mm) | ≤±0.01 mm |
Single measurement time(s) | ≤3s |
Measurement point(mm) | 0.1-0.3mm |
Holon-3DPmeasurement precision | 0.0125 mm/m |
Grating technology |
Heterodyne multiple frequency phase shift grating |
Sensor |
German original sensor |
Lens specifications |
Macro lens, Small lens |
Splicing |
Automatic splicing |
Range |
10mm diameter to 2m tall objects |
Depth | Not only the general object scanning, but also greater depth of field object scanning(0～180mm) |
Compatible software | A variety of data format can be formed for other softwares including obg,sfl,ply,asc,ac,pif and so on. Also can be converted to AutoCAD, Geomagic Studio, Rapid Form, ImageWarepost, then carries on the post-processing.
|
Operating system |
Windows98/NT/2000/XP/Vista |
voltage |
alternating current 100~230v, 50/60Hz |
